Description
- You get the convenience of a throttle for accelerating and the smooth support of pedal assist while you ride
- The portable magnetic wall-mount charger makes getting your battery ready to ride a hassle-free process
- Wide, stable tires deliver tons of traction and confidence for riding through town, on paths, and on rail trails
- Integrated lights, turn signals, and brake light help you see and be seen wherever you roll
- You get low-maintenance, reliable shifting thanks to Shimanos 8-speed ESSA drivetrain

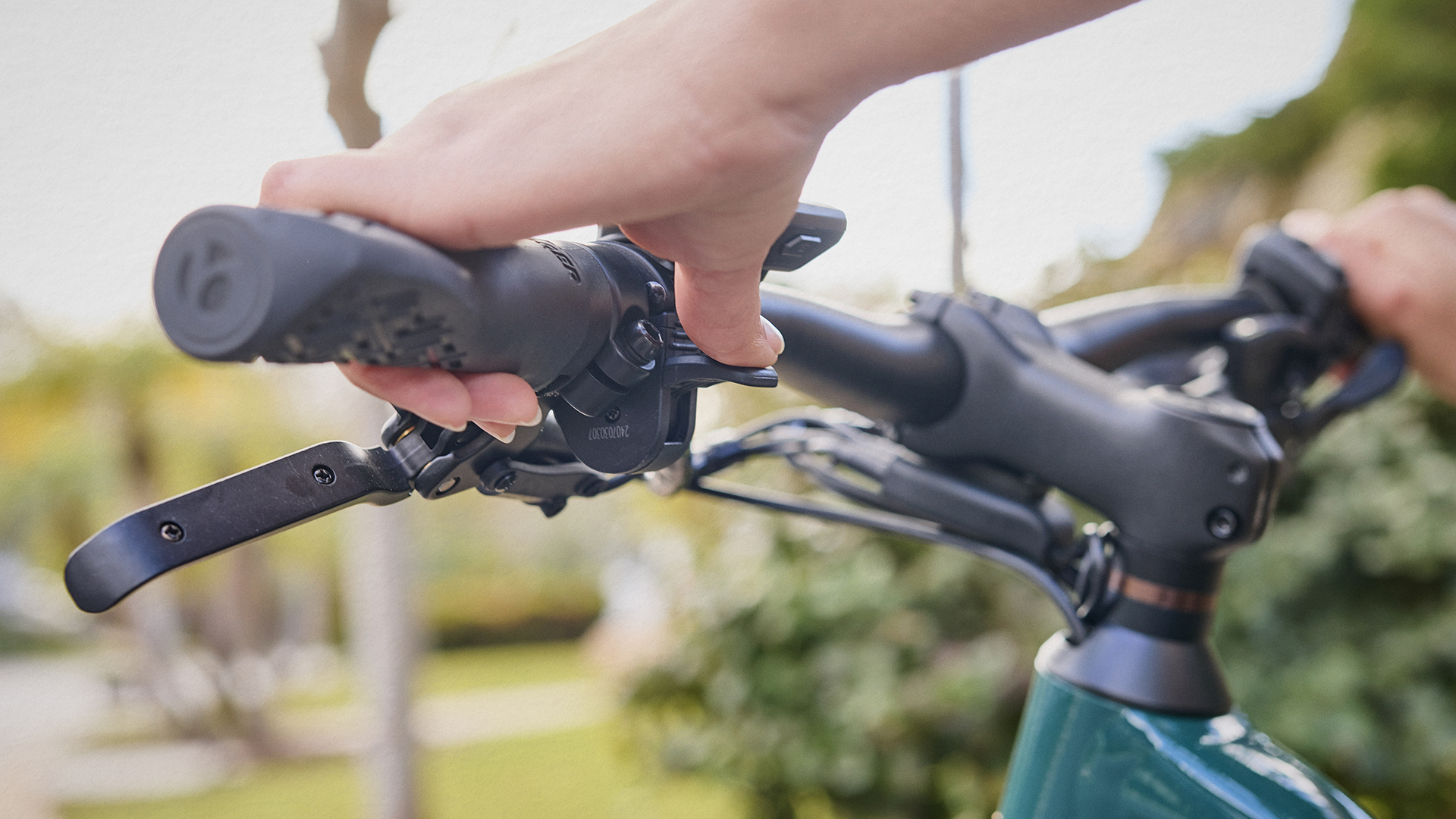

Throttle up the fun
With the push of a button, the easy-to-use throttle lets you flatten hills, ride further, and adventure longer, without breaking a sweat.

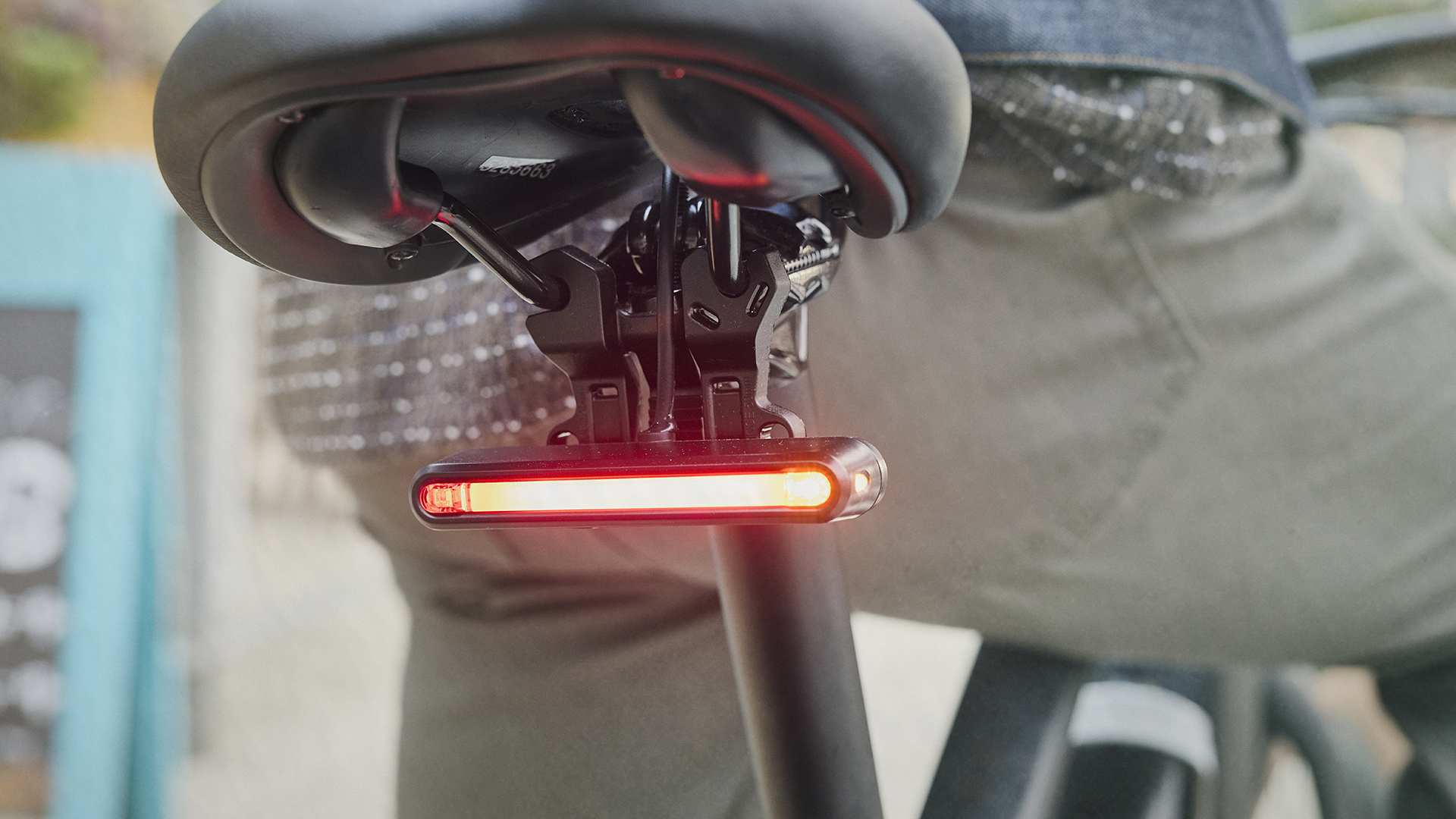

Send the right signals
FX+ 1 comes equipped with a bright, rear taillight with an integrated brake light and turn signals for increased visibility on the road.

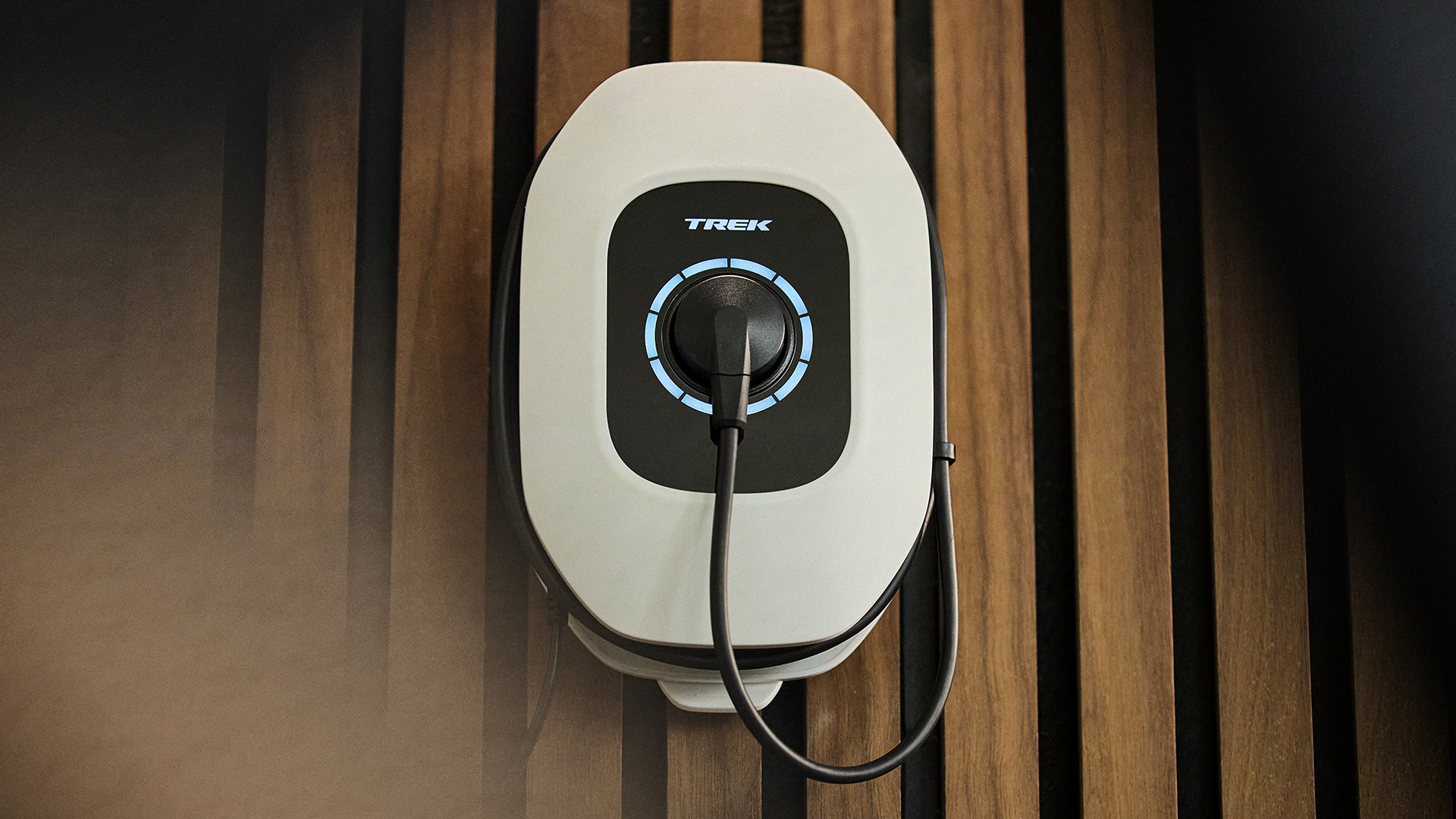

EasyMag for easy charging
Designed with a hassle-free magnetic attachment to charge, bright LED status lights, and an optional wall mount, EasyMag lets you charge at home or on the go.

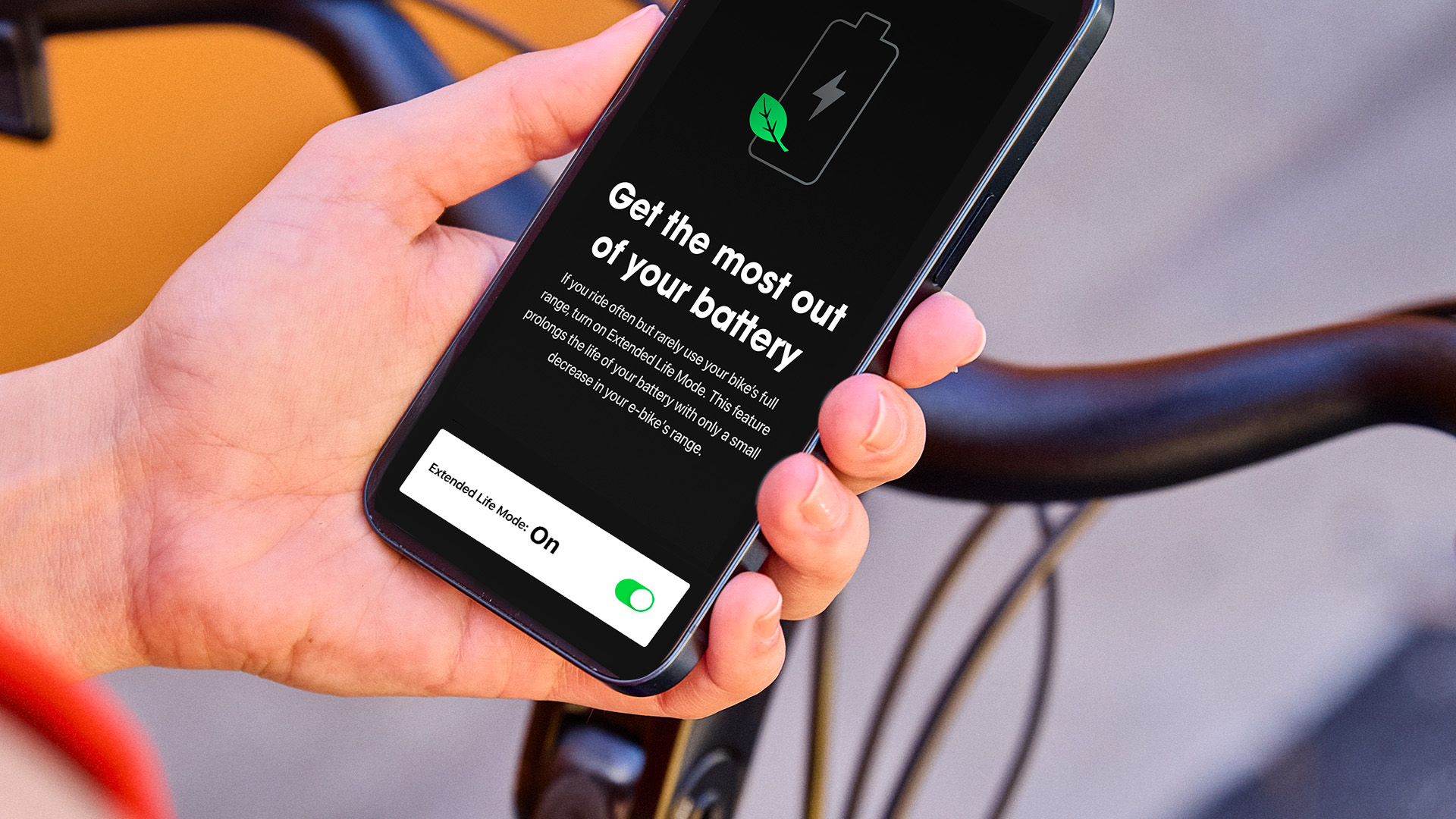

Get connected
FX+ 1 pairs with the Trek Central app so you can easily adjust your bikes settings for longer range, map the perfect routes, track your ride stats, and so much more!
Compliant with leading safety regulations
The e-systems on Trek and Electra e-bikes are third-party tested to meet the latest e-bike safety regulations, including the stringent UL 2849 certification — so all you have to worry about is where your e-bike will take you next.
Upgrade your pedals and love your bike more
Pedals are two of the five touchpoints that connect you with your bike, and even though this bike comes with a pair, upgrading to pedals that boost control and grip will greatly improve your ride. See the pedal guide and find the best pedals for your riding style. We recommend flat pedals for simple versatility.
| Frame | Alpha Gold Aluminum, internal cable routing, internal battery, rack & fender mounts, flat mount disc brake, kickstand mount, 144.5mm OLD hub motor spacing |
| Fork | Alloy, internal brake routing, fender mounts, rack mounts, ThruSkew 5mm bolt-on skewer |
| Tire | Bontrager GR0 Comp, wire bead, 60 tpi, 650x50mm |
| Hub Front | Alloy low-flange w/6-bolt disc, 36h, w/QR |
| Rim | Alloy double wall, 36h |
| Skewer Front | 132x5mm QR, ThruSkew |
| Shifter | Shimano M315, 8 speed |
| Rear Derailleur | Shimano ESSA U2000 |
| Crank | Alloy, 40T steel chainring, 170mm length |
| Cassette | Shimano HG400, 11-45, 8 speed |
| Chain | KMC Z8.3 |
| Brake | Rush BH-286 hydraulic disc, 180mm rotor // Rush BH-286 hydraulic disc, 180mm rotor |
| Pedal | Bontrager City pedals |
| Saddle | Bontrager Sport Womens |
| Seatpost | Bontrager alloy, 31.6mm, 12mm offset, 330mm length |
| Seat Collar | Bolt-on, 36.4mm |
| Handlebar | Bontrager alloy, 31.8mm, 15mm rise, 690mm width |
| Stem | Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length |
| Grips | Bontrager XR Endurance Comp, lock-on |
| Light | Herrmans MR8, 180 lumen, 60 lux, LED headlight // Sate-Lite M-15 with turn signal and brake light function |
| Kickstand | Adjustable length alloy kickstand |
| Battery | 520Wh, integrated in down tube |
| Motor | Hub drive motor, 60 Nm, 500W, 36H, black |
| Charger | Trek Easy Mag charger, 2.7A, 54.9V output, 100V-240V AC input |
Geometry Chart
| B B Drop | 7 |
| B B Height | 28.6 |
| Chainstay Length | 46.8 |
| Eff Top Tube | 56.9 |
| Frame Reach | 38.2 |
| Frame Size Letter | S |
| Frame Size Number | 45cm |
| Frame Stack | 60.4 |
| Head Angle | 70.0° |
| Head Tube Length | 15.5 |
| Offset | 5 |
| Seat Tube | 40.8 |
| Seat Tube Angle | 73.5° |
| Standover | 65.5 |
| Trail | 7.6 |
| Wheelbase | 109.2 |
| Wheel Size | 700c |
